RFID Antennas: The Unsung Hero of RFID Systems

When it comes to RFID systems, readers and tags tend to get all the attention. But as RedBeam’s RFID Solutions Architect Kyle Stanford explains in Episode 6 of our All About RFID series, it’s the RFID antenna that quietly makes it all work.

Think of the reader as the brain of the operation — and the antenna as its mouth and ears. The reader generates the intelligence, but it’s the antenna that actually sends energy out to the tags and listens for their responses. In other words, antennas are the unsung heroes that make RFID communication possible.

What Is an RFID Antenna and How Does It Work?

An RFID antenna connects to an RFID reader via a coaxial cable. When the reader sends energy through that cable, the antenna broadcasts it into the air as radio waves. Those waves energize nearby RFID tags, prompting them to send back their unique ID numbers.

The antenna then “hears” those signals and sends them back to the reader — creating a continuous, invisible conversation between hardware and tag. The better your antenna is tuned to your environment, the stronger and more accurate that conversation becomes.

Choosing the right antenna is crucial. It determines your system’s read range, accuracy, and coverage area — and can make or break an RFID deployment.

RFID Antenna Polarization Explained

Not all antennas transmit the same way. The polarization of an RFID antenna refers to the orientation of its radio waves — and it comes in two main types:

• Linear Polarization: The radio waves travel in a straight line, concentrating energy in one direction. This gives you a longer read range, but it requires your RFID tags to be properly aligned with the antenna. Ideal for applications like conveyors or portals, where tag orientation is consistent.


• Circular Polarization: The signal moves in a spiral, or “corkscrew,” pattern. While this slightly reduces range, it makes it much easier to read tags placed at different angles — perfect for mixed-orientation environments like warehouses or retail spaces.



Understanding polarization helps ensure that every tag in your environment is seen, no matter how it’s positioned.

Common RFID Antenna Form Factors

RFID antennas come in several shapes and sizes, each designed for specific use cases:

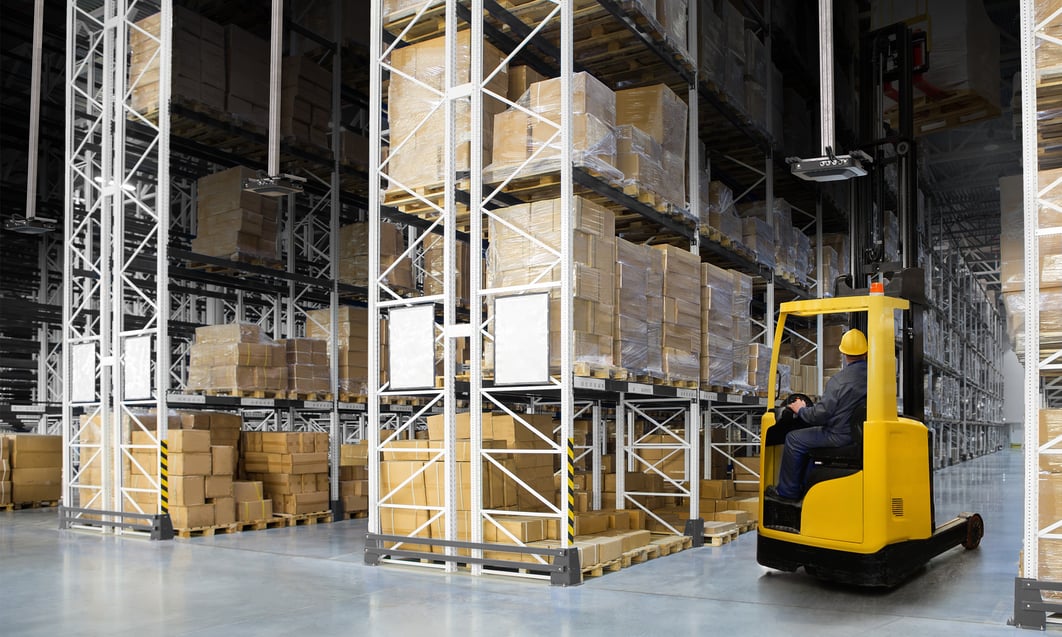

• Patch Antennas: The most common form factor, shaped like flat squares or rectangles. These “spotlight” antennas focus energy in a cone-shaped beam, making them ideal for dock doors, portals, and conveyors.


• Near-Field Antennas: Instead of projecting far, these create a small electromagnetic “bubble.” Perfect for tiny items or close-range reads — like jewelry, tools, or bottles of liquid — without interference from nearby tags.


• Wave (Traveling Wave) Antennas: These project a narrow, controlled read zone, making them ideal for gates or doorways where you only want to capture items passing through a specific area.


• Phased Array Antennas: The high-tech version — equipped with multiple internal elements and smart algorithms. These can detect direction and location, even estimating an item’s position in 3D space. While more expensive, phased array antennas are powering the next generation of RFID precision.



Understanding RFID Antenna Gain

Antenna gain measures how “loud” an antenna can broadcast and how well it can “hear” returning signals.

A high-gain antenna sends energy further and receives weaker signals more effectively, while low-gain or near-field antennas are designed for precision in small areas. Gain is measured in dBi or dBic — make sure to compare apples to apples when evaluating spec sheets.

Simply put:

• High gain = longer range
• Low gain = close range, higher accuracy



Cables, Connectors, and Installation Tips

Even the best RFID antenna won’t perform well if the cables or connectors are subpar. Cheap or mismatched cables can cut your signal strength in half before it even reaches the antenna.

Here are a few quick best practices:

• Match your connector types (e.g., RPTNC, N-type, SMA) between the reader and antenna.
• Use high-quality, low-loss coaxial cables — thicker cables like LMR-400 minimize signal loss over longer runs compared to smaller ones like LMR-240.
• Keep cable runs as short as possible and avoid tight bends.
• Consider the environment and aesthetics — for instance, use black or low-profile antennas in visible indoor areas like theaters or showrooms.

How to Choose the Right RFID Antenna

Selecting the right RFID antenna depends on what you’re tracking and where you’re tracking it.

Ask yourself:

• Are my tags consistently oriented (linear) or randomly positioned (circular)?
• Do I need long-range coverage (patch or wave) or short, controlled zones (near-field)?
• Is my environment reflective, metallic, or exposed to liquids?
• How far is my reader from the antenna, and what type of cable will I need?

When in doubt, test multiple antenna types in your actual environment. A few minutes of testing can prevent major issues during deployment — and ensure your system performs exactly as intended.

Why It Matters

RFID antennas may not get the spotlight, but they’re the backbone of a successful RFID system. From polarization to gain, every detail affects how efficiently data travels between your tags and readers.

As Kyle says:

“RFID antennas are the part that can really make the deployment work correctly.”

In the next episode, Kyle explores RFID tag encoding — uncovering what’s actually stored on each tag and how that data connects to your system.
